PS24 PoE Switch
The PS24 full power rack mount switch is a professional solution to power large amounts of PoE devices.
With its 24x 1 Gigabit Ethernet ports and a PoE budget of 410 W, it can comfortably power up to 24x 802.3af devices or 13x 802.3at devices at the same time. 4x SFP+ transceiver slots provide 10 Gbps connectivity per slot to the optical fiber network. The backplane switching capacity of 128 Gbps allows Gigabit throughput on all Ethernet & SFP+ ports without hitting any bottleneck.

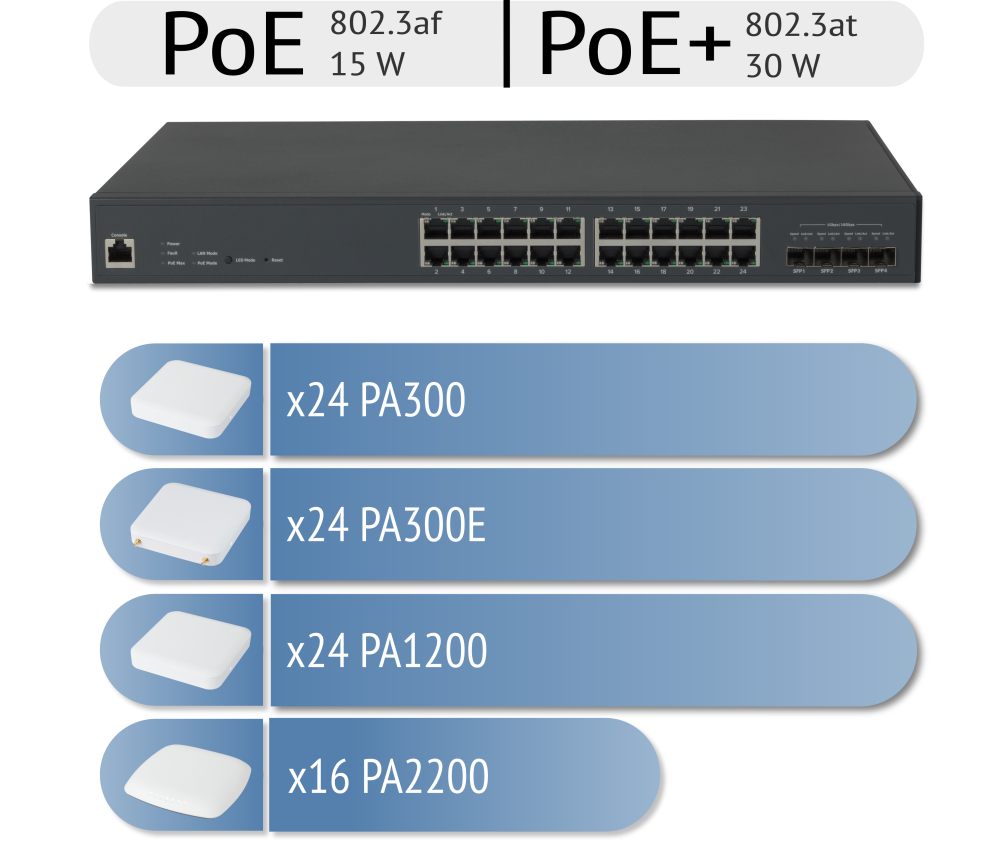

How many devices can be powered ?
Plasma Cloud switches support 802.3af and 802.3at PoE standards. Each port comes with the capability to detect the PoE standard required by the connected device. Therefore, a mix of 802.3af and 802.3at power consumers can be powered.
The amount of power supplied on each PoE port may vary greatly depending on power consumption of the connected device. To give an example: although the PA300 uses 802.3af PoE standard, its actual power consumption is 11.5 W or less (depending on system load and cable length). Consequently, a PS24 allows to power up to 24x PA300 despite the PoE standard defining a power consumption of 15.4 W.
When the exact power consumption is not available, refer to the PoE standard (802.3af: 15.4 W, 802.3at: 30 W) to estimate the number of devices that can be powered through this PoE switch.
Why Power over Ethernet
Power over Ethernet (PoE) allows you to combine data transfer and power supply using a single Ethernet cable which terminates in a PoE switch. Thereby, cabling effort can be reduced and power management of all connected devices greatly simplified. Combined with the powerful Plasma Cloud console, all connected devices can be centrally managed, power consumption monitored, power schedules automated and even non-Plasma Cloud devices power cycled when needed.
Almost all networking equipment today supports PoE, including WiFi Access Points, IP cameras, VoIP phones, and many more IoT devices. This allows for easy installation since PoE enables you to place devices in locations removed from power outlets (up to 100m Ethernet cable length).
The included mounting brackets offer to mount the PS24-L onto a rack or wall.
It also can be positioned on a desk or shelf.
|Network Switch Specification|
|10 / 100 / 1000 Mbps Ethernet Ports||24|
|SFP Slots||4 (SFP+)|
|Flash Memory||2 MB NOR, 128 MB NAND|
|PoE Budget||410 W|
|Switching Capacity||128 Gbps|
|Power Input||100-240 VAC, 50/60 Hz|
|Power Supply||Internal, 480W|
|Mounting Options||Desktop, wall mount, rack mount|
|Dimension (W x D x H)||440 x 260 x 44 mm|
|Operating Temperature||0 C ~ 50 C (32 F ~ 122 F)|
|Certifications||CE, FCC, IC, RCM|
|L2 Features||IEEE802.3ad Link Aggregation, Port Mirroring, Port Trunking, IGMP Snooping v1/v2/v3, IGMP Fast Leave, MLD Snooping, VLAN Group, Voice VLAN, 802.1D Spanning Tree Protocol (STP), 802.1p Traffic Priority Management|
|Zero Config Plug-n-Play||Yes|
|Free Cloud Console||Yes|
|Free Mobile App||Yes|
